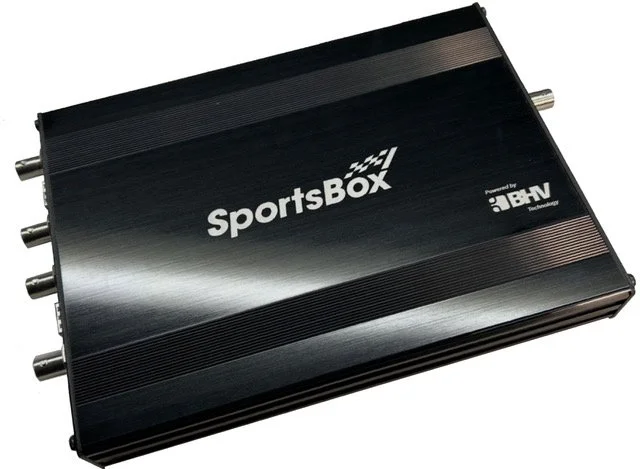

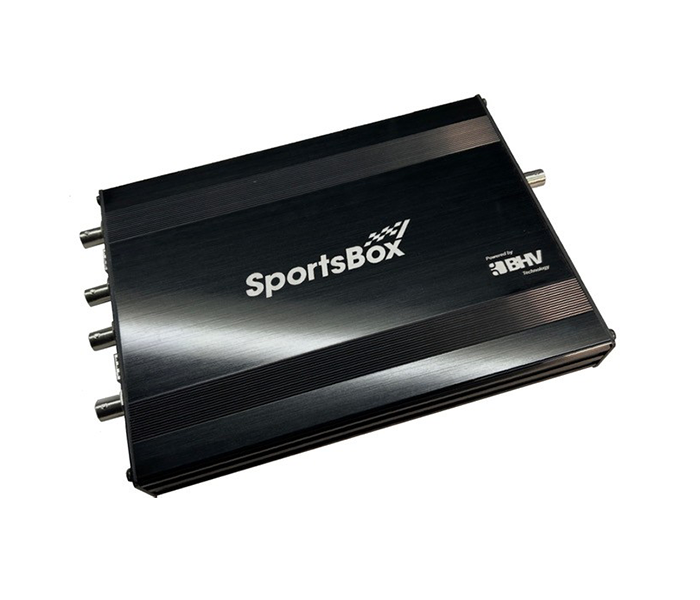

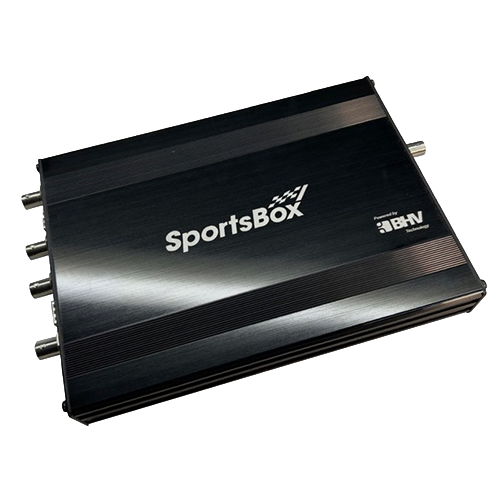

Feature Product - SportsBox
Big Production Power from the Industry's smallest Remote Switcher
Flexibility without compromise for High-Action Multi-Camera Productions
Meet SportsBox – the broadcast industry’s smallest remote switcher and format processor. Designed to bring flexibility and portability to high-action multi-camera productions, SportsBox is uniquely capable of transmitting four camera signals down a single video path (5G, COFDM), giving access to four cameras feeds for live viewing/mixing in the production gallery with full 4K 60P 4:2:2 throughout. SportsBox offers four full format SDI inputs so any source from SD to 4K in any mix can be scaled, synchronised, and transferred by one wireless link.
Designed to bring flexibility and portability to high-action multi-camera productions, SportsBox is uniquely capable of transmitting four camera signals down a single video path (5G, COFDM), giving access to four cameras feeds for live viewing/mixing in the production gallery with full 4K 60P 4:2:2 throughout. SportsBox offers four full format SDI inputs so any source from SD to 4K in any mix can be scaled, synchronised, and transferred by one wireless link.
Overview
SportsBox is the broadcast industry’s smallest remote switcher and format processor. Designed to bring flexibility and portability to high-action multi-camera productions, SportsBox is uniquely capable of transmitting four camera signals down a single video path (5G, COFDM), giving access to four cameras feeds for live viewing/mixing in the production gallery with full 4K 60P 4:2:2 throughout. SportsBox offers four full format SDI inputs so any source from SD to 4K in any mix can be scaled, synchronised, and transferred by one wireless link.
At the receiving end, two modes are possible:
(i) Single mode: the 5G/COFDM receiver will output an SDI programme feed.
(ii) Dual mode: the 5G/COFDM feed passes to a second SportsBox in receiver mode, allowing for live edit decisions. This provides two outputs:
(a) SDI programme feed
(b) HDMI gallery feed, comprising a multiview of the
programme and three preview feeds.
Features
- Four full format SDI inputs from SD to 4K
- Single SDI and HDMI mixer outputs
- Independent scaling, mixing and synchronisation on all 4 channels
- Full 4k/60 4:2:2 10bit processing throughout
- Single silicon design for rugged environments
- Comprehensive remote user interface for gallery control
- AES audio I/O
- 3 CANBus ports
Specifications
| Video Interface | 12G-SDI / HDMI / IP |
|---|---|
| Video Formats | HD, 3G, UHD and 4K |
| Power | 10-18VDC @ 21W (transmitter mode) 10-18VDC @ 16W (receiver mode) |
| Operating Temperature | 0°C to 50°C ambient |
| Dimensions | 225 x 170 x 30mm |
| Weight | 900g |
SportsBox is designed and manufactured by BHV. We originate broadcast and IoT hardware, firmware and cloud solutions and turnkey engineering services. Our embedded engineering design specialist team offers rapid product development through our significant IP holdings and unparalleled skill set. BHV products can be found in key brands in the broadcast and medical sectors, ranging from single components to full suites. BHV's procurement and manufacturing resources are thoroughly vetted and supported by trusted third parties, enabling us to support fully the product realisation process. We also offer in-depth diagnosis of technical issues, project takeover and recovery.
